Chronoscope X1 Witschi
slide 3 of 2
€12,599.99*
Currently not available. Delivery time: about 2 weeks
Product number:
233421
Product information "Chronoscope X1 Witschi"

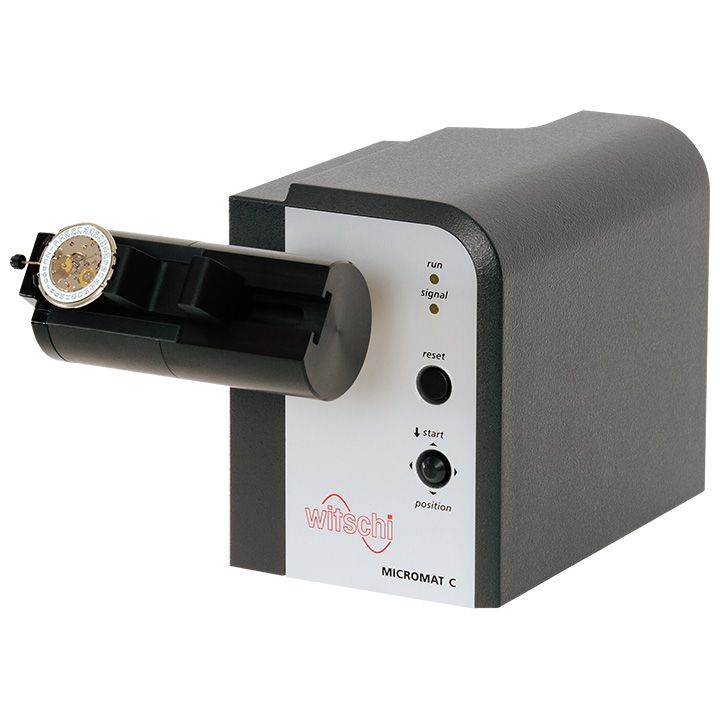

The Chronoscope X1 consists of the X1 (G2) terminal with a 10.4" colour touch screen and the automatic microphone, Micromat C, with integrated chronoscope measurement electronics.
4 different display modes are available, as well as the
graphical representation of impact sounds. For each measurement program, PDF files, e.g., assembly plans,
etc., can be stored individually.
Network Ready WiCo trace database.
New, selectable menu for storing customer information.
Representation of impact sounds on two horizontal axes. Option of signal averaging of 1, 10, 20, and 50 impact sounds.
Long-term recording up to 100 hours.
Menus: Chart, Trace, Vario, Scope, Sequence (6 positions)
Programmable tolerances (limits).
Results storable on USB stick in PNG format.
Printer connection
Storable PDF files (e.g. oiling/assembly and component plans)
Touch screen monitor
Screen saver
Includes:
1 motor microphone Micromat C
1 power adaptor 209484
Options:
Printing of display with thermal printer (213290)
Autoprint PC software for transferring measurement results and diagrams to a PC (214444)
Pendulum clock adjustment: With optoelectronic transducer (4352 210)
Tripod for pendulum clock adjustment (4352 211)
Clamping microphone for alarm clocks and clocks (4352 209)
GPS receiver for calibration and real-time clock (214970)
4 different display modes are available, as well as the
graphical representation of impact sounds. For each measurement program, PDF files, e.g., assembly plans,
etc., can be stored individually.
Network Ready WiCo trace database.
New, selectable menu for storing customer information.
Representation of impact sounds on two horizontal axes. Option of signal averaging of 1, 10, 20, and 50 impact sounds.
Long-term recording up to 100 hours.
Menus: Chart, Trace, Vario, Scope, Sequence (6 positions)
Programmable tolerances (limits).
Results storable on USB stick in PNG format.
Printer connection
Storable PDF files (e.g. oiling/assembly and component plans)
Touch screen monitor
Screen saver
Includes:
1 motor microphone Micromat C
1 power adaptor 209484
Options:
Printing of display with thermal printer (213290)
Autoprint PC software for transferring measurement results and diagrams to a PC (214444)
Pendulum clock adjustment: With optoelectronic transducer (4352 210)
Tripod for pendulum clock adjustment (4352 211)
Clamping microphone for alarm clocks and clocks (4352 209)
GPS receiver for calibration and real-time clock (214970)
| Article name: | Chronoscope X1 |
|---|---|
| Brand: | Witschi |
| Dimensions height mm: | 215.00 |
| Dimensions width mm: | 125.00 |
| External dimension length: | 115.00 |
| Gross weight grams: | 1700.00 |
| Special feature: | with motor microphone |
| Volt/Hz: | 230 / 50 |
